25 kW Single-Phase Inverter for Wind & Energy Storage

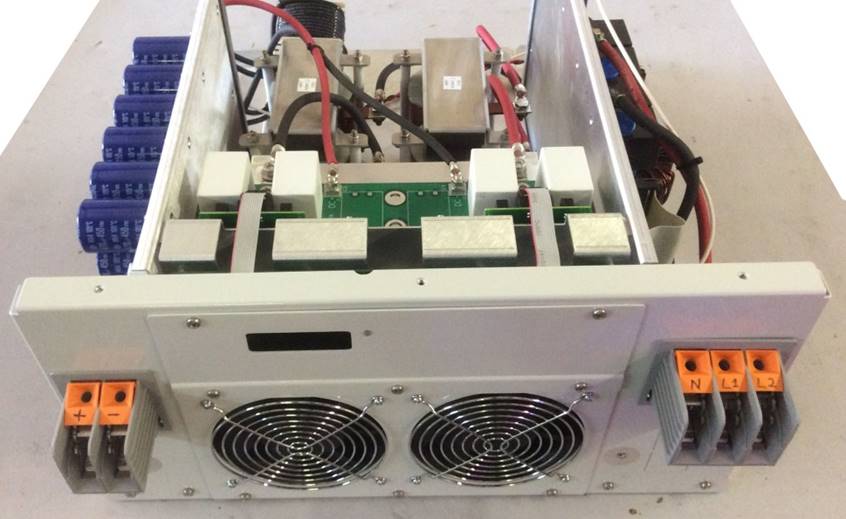

The Intergrid IG-25-240 inverter uses Silicon Carbide (SiC) FET technology allowing high switching speeds while reducing switching losses to less than 1/10th of conventional IGBT technology. The inverter is designed for both wall-mounted and rack-mounted installation. The inverter uses 1200V switching devices and can operate over an input operating range of 360 to 900 Vdc. This means that it can be used with a simple rectifier input from a wind generator eliminating the need for a front-end dc-dc converter in many applications.





Output Power

25 kW single-phase continuous

Output Voltage

120/240 Vac single-phase. 208 V option for commercial systems (rated 22 kW).

Output Current

105 A ac max.

Output Power Factor

Zero to 0.99, Adjustable leading and lagging.

Output Frequency

US – 59 – 61 Hz with ride-through capability.

50 Hz version possible for export

Input Voltage

350 – 900 Vdc

Input Current

75 Adc max

Environmental

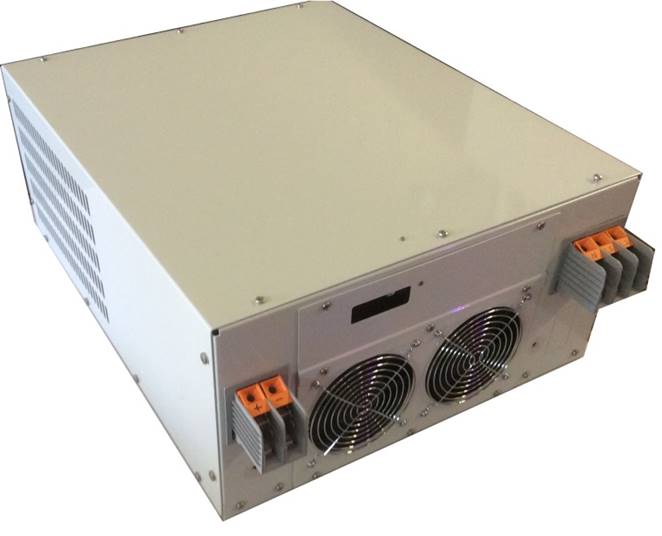

NEMA 1 – rack and wall mount options

Mechanical

21.5 x 17.6 x 9” (depth x width x height rack mounted)

55 x 45 x 23 cm.

Weight

Approx. 75 lb (34 kg).

Inverter Efficiency

Approx 99%

Communications

Isolated RS485/Modbus, isolated CAN



Three-phase versions rated 36 kW 120/208 V and 75 kW 277/480 V are also available.

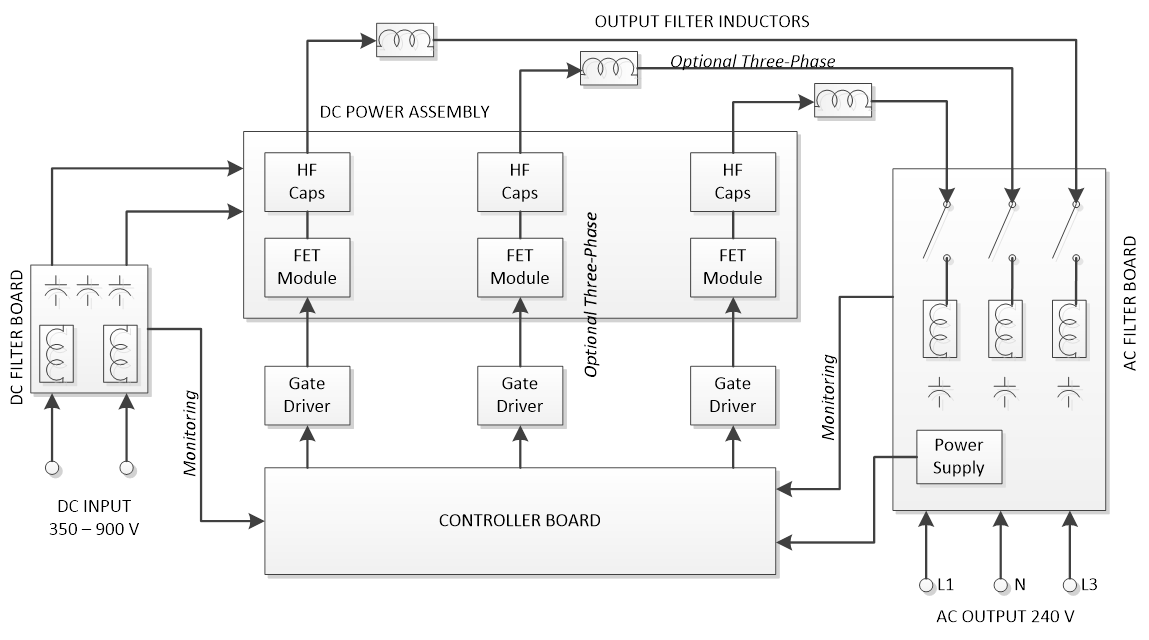

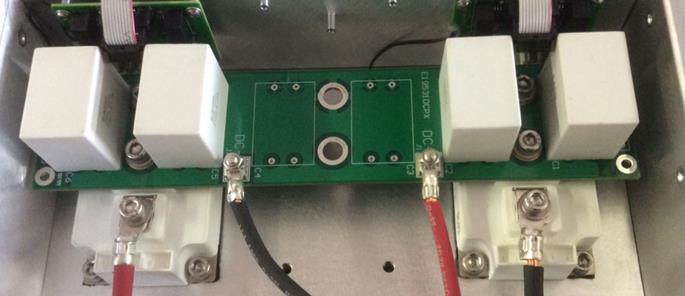

The inverter topology is a standard full bridge. Each half-bridge switches at 25 kHz creating an effective switching frequency of 50 kHz. This and the efficiency of SiC devices makes the inverter significantly smaller and lighter than conventional designs.
